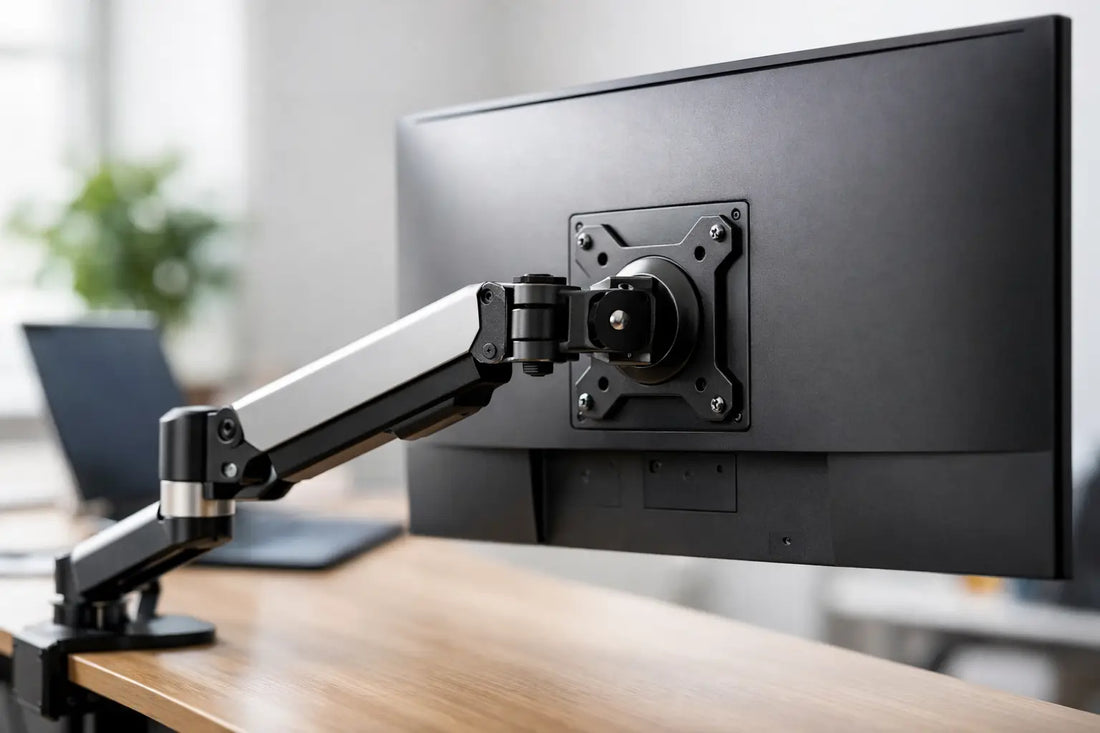

VESA Monitor Arm Compatibility Made Simple
Share
A monitor arm can make a crowded desk feel like a fresh battlestation upgrade. Your display floats at the right height, your mouse gets more room to move, and cables stop hanging across the desk. But one mismatch in VESA monitor arm compatibility can turn that clean setup plan into a return, a wobbly screen, or a monitor that cannot mount at all.
The good news: compatibility is not complicated once you check the right details. Your monitor’s mounting pattern is the starting point, but it is not the whole story. Screen weight, panel size, monitor depth, desk construction, and the arm’s adjustment range all decide whether your new setup will actually feel great to use.
Start With the VESA Mounting Pattern
VESA is the standard bolt-hole pattern on the back of many monitors. It tells you whether an arm’s mounting plate can physically attach to the display. You will usually see it written as two measurements in millimeters, such as 75 x 75 mm or 100 x 100 mm.
For most gaming, office, and streaming monitors, these are the common patterns:
- 75 x 75 mm
- 100 x 100 mm
- 200 x 100 mm
- 200 x 200 mm
Some monitors have four mounting holes that are easy to spot. Others hide them behind a removable plastic cover or built-in stand plate. If you cannot see the holes immediately, check before ordering an arm instead of forcing a panel loose or guessing from photos.
What if your monitor has no VESA holes?
A monitor without VESA mounting points is not automatically out of the game. Universal VESA adapters can clamp around certain displays and create a mounting point for an arm. They are useful for lighter monitors, but they add bulk and are not the first choice for a heavy curved screen or an expensive ultrawide.
An adapter also changes the monitor’s effective weight and depth. That matters because the arm must support the panel plus the adapter, not just the number printed in the monitor specs. If you want maximum stability and a cleaner look, a monitor with native VESA mounting is the better long-term pick.
VESA Monitor Arm Compatibility Also Depends on Weight
A mounting pattern tells you whether the monitor fits the plate. The arm’s weight range tells you whether it can hold the monitor in place.
Every monitor arm has a minimum and maximum supported weight per screen. Pay attention to both. A display that exceeds the maximum can slowly droop, tip forward, or put stress on the arm mechanism. A very light display can be a problem too, particularly with gas-spring arms. If the monitor sits below the arm’s minimum rating, the spring may keep pushing it upward no matter how much you adjust the tension.
Use the monitor’s weight without its original stand, since the stand is removed when the arm is installed. Then add any VESA adapter, webcam, monitor light bar, or other accessory that mounts directly to the screen. A little headroom is smart. If your panel weighs 14 pounds, an arm rated up to 15 pounds may work on paper, but an option with a higher safe limit gives you more confidence and smoother movement.
Curved monitors deserve extra attention. Their listed weight may be within range, yet the curve places more of that mass farther from the mounting point. This creates additional leverage on the arm. A high-quality arm designed for curved or ultrawide displays is usually the safer call.
Screen Size Is a Guide, Not the Main Rule
Monitor arms often list a supported screen-size range, such as 17 to 32 inches. Treat this as useful guidance, not the deciding spec. Two 32-inch monitors can be dramatically different in weight, shape, and depth.
A slim 32-inch office panel may be easy for a standard arm to hold. A 32-inch curved gaming monitor with a deep chassis can need a much stronger arm even if both displays share a 100 x 100 mm VESA pattern. Ultrawides are the classic example: their diagonal measurement can sound reasonable, while their width and forward weight make them a tougher match.
For dual-monitor arms, overall width matters just as much as individual size. Two 27-inch displays usually fit comfortably side by side. Two 32-inch panels may collide at the edges or require one monitor to sit higher than the other. If you are building a stacked layout, verify that the pole or vertical adjustment range is tall enough for the lower and upper screens.
Check the monitor’s rear shape and port placement
Not every VESA mount area is equally easy to reach. Some displays have recessed mounting holes, a thick rear housing, or ports positioned close to the VESA plate. A standard arm may still work, but you may need the included spacers and longer screws.
Never replace mounting screws with random hardware from a toolbox. Screws that are too long can damage the monitor’s internal components. Screws that are too short may not hold securely. Your monitor manual should specify the thread type and depth, while the arm should include compatible hardware or clear instructions for spacers.
Before tightening everything, connect your power cable, DisplayPort or HDMI cable, and any USB leads. Make sure the arm plate does not block a port and that the cables have enough slack for full movement. A clean cable-managed desk is great, but a cable pulled tight at full extension is not.
Make Sure Your Desk Can Support the Arm
The monitor and arm are only half of the equation. Your desk has to handle the clamp or grommet mount safely.
Clamp-mounted arms attach to the back edge of a desk and are the easiest option for most battlestations. Check the supported desktop thickness, then look underneath the desk before buying. Crossbars, drawers, cable trays, and metal frames can block the clamp even when the top looks perfect.
Grommet-mounted arms pass through a hole in the desktop. They offer a very secure, centered installation and work well if your desk already has a cable grommet in the right spot. However, the hole must be the correct diameter and positioned where the arm has room to move.
Particleboard and hollow-core desktops require more care than solid wood or thick metal-frame desks. A heavy monitor arm concentrates force in one small area, especially when the screen is pulled forward. A reinforcement plate can spread that pressure and help protect the desktop. If your desk flexes when you lean on it, do not pair it with a large ultrawide on a long-reach arm without reinforcing the mounting point.
Choose an Arm Based on How You Actually Play and Work
The best arm is not always the one with the most movement. It is the one that suits your setup.
A fixed or simple single-monitor arm is ideal if your screen stays centered and you mainly want more desk space. A gas-spring arm is better when you switch between sitting, standing, streaming, and shared workspaces. It lets you pull the monitor closer for focused gaming, push it back for controller play, or rotate it vertically for chat, code, or Discord.
Rotation is another detail worth checking. Many arms advertise portrait support, but a wide curved monitor may hit the desk before it can rotate. Likewise, a monitor can technically tilt while still being too close to a wall for full movement. Measure the space behind your desk if you want a full range of motion.
For a dual-screen battlestation, decide whether you want both displays perfectly aligned, angled inward, or stacked. A single pole-style dual arm can look tidy and cost less, while two independent arms provide more flexibility for mismatched screens. If one monitor is a main 27-inch gaming panel and the other is a lighter vertical display, independent arms usually make adjustment easier.
A Quick Compatibility Check Before You Order
Before adding a monitor arm to your setup, confirm these four things: your monitor’s VESA pattern, its weight without the stand, the arm’s supported weight range, and your desk’s mounting space and thickness. Then consider your real-world layout - especially monitor depth, port access, wall clearance, and whether you plan to add a second screen later.
This takes a few minutes, but it prevents most mounting headaches. It also helps you buy for the setup you want next month, not just the desk you have today. Whether you are clearing space for a precision mousepad, dialing in an ergonomic work position, or making room for a full RGB battlestation, the right monitor arm should feel solid, adjustable, and completely out of your way.
